Specification Sheet:
Click to download specifications

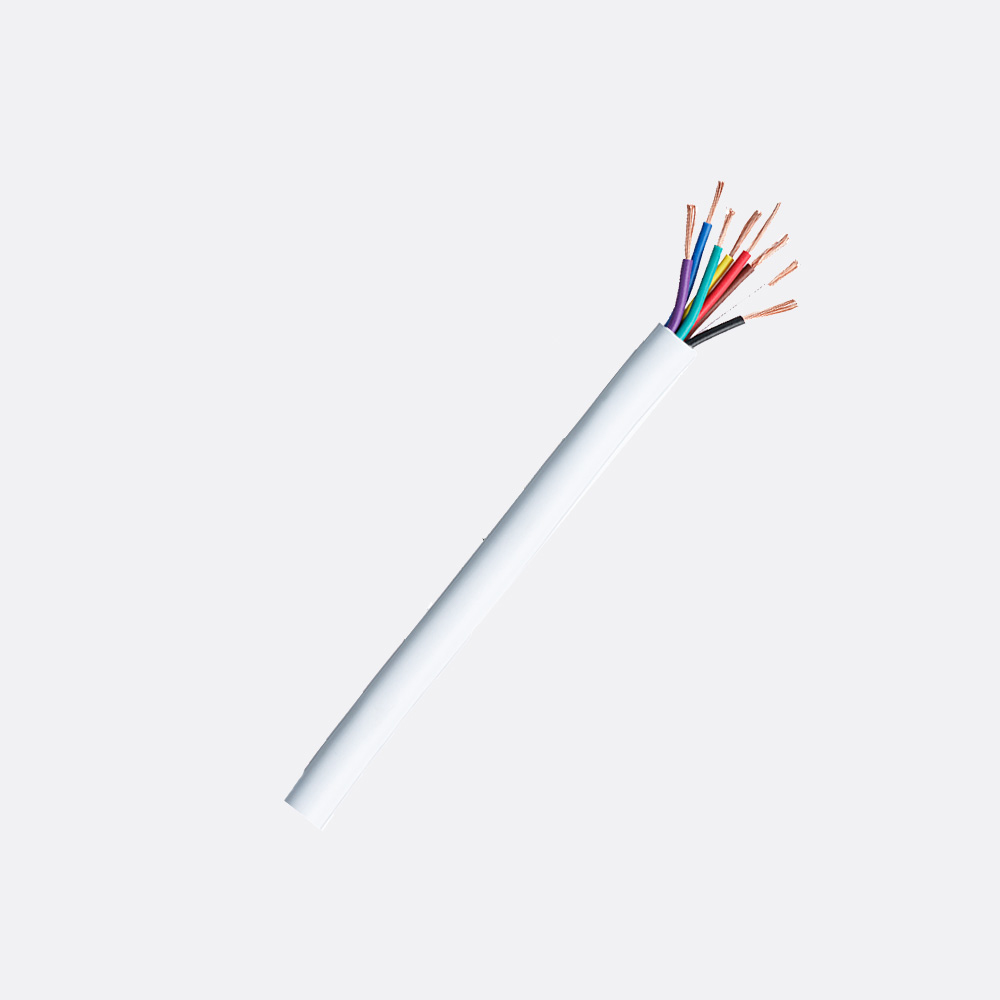

8 Core 14/.2 PCW HFI-90-TP insulated, HFS-90-TP sheathed.
Security Cable. Extra-low voltage, not for mains connection.
Flame Retardant Low Smoke Zero Halogen.
Oxygen-Free Copper. RoHS Compliant.
Construction
Conductor: 14 strands of 0.2 mm nom. Annealed Copper to AS1125 drawn from Class 102 Oxygen-Free Copper to AS1574.
Max. D.C. resistance at 20C : 44.8 ohms / km.
Insulation: Coloured HFI-90-TP to AS/NZS 3808. (Flame Retardant Low Smoke Zero Halogen.)
Nominal Diameter: 1.5 mm.
Nominal Wall Thickness: 0.26 mm.
Lay Up: 8 cores twisted.
1. Black
2. White
3. Red
4. Blue
5. Green
6. Yellow
7. Brown
8. Violet
Sheath: Coloured HFS-90-TP to AS/NZS 3808. (Flame Retardant Low Smoke Zero Halogen.)
Nominal Diameter: 6.7 mm.
Nominal Wall Thickness: 0.76 mm.
Identification: TYCAB LSOH SMLS81402 SECURITY ACA N1155 >I<” – at nominally 1000mm spacing.
