Specification Sheet:
Click to download specifications

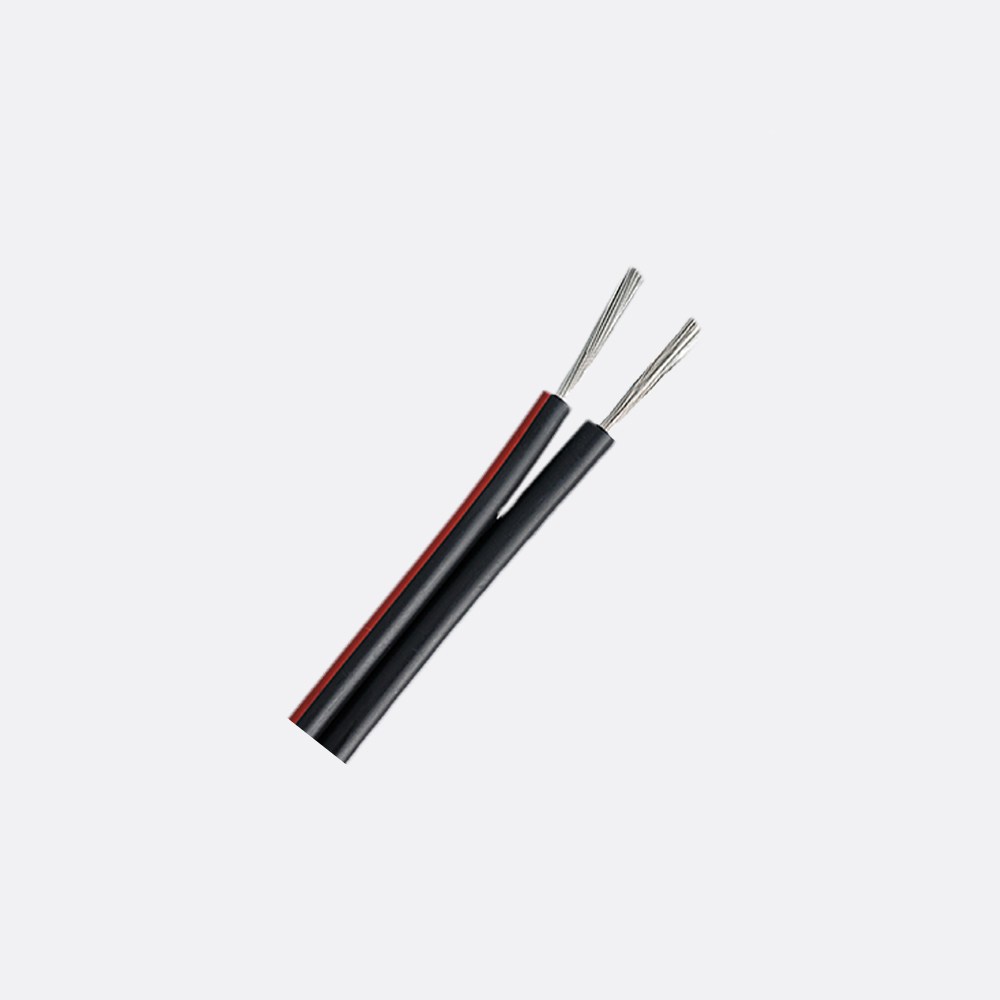

2 X 78/.3 (6mm2). Tinned Copper Wire, XLPO Insulated & XLPO Sheathed in TWIN format SOLAR CABLE.
Certified to EN50618/IEC62930. TUV
1.5kV dc -40c to 120c.
Construction
Conductor: 78 strands of 0.3mm nom. TINNED Annealed Copper to AS/NZS 1125 Class 5.
Max. D.C. resistance at20C: 3.39 ohms / km.
Insulation: XLPE
Nominal Wall Thickness: 0.62 mm.
Core Colours:
1. Black
2. Red
Sheath: BLACK with RED polarity stripe on side of Red core.
XLPO Single Double Insulated (TWIN) configuration.
Nominal Dimensions: 5.65 x 11.6.
mm Nominal Wall Thickness: 0.63 mm.
Identification: Printed on sheath in contrasting colour – HFXT27803- XLPO insulated TUV 2pfG 1169 2 x 6MM2 0.9/1.5kV DC UV STABLE DC USE ONLY – DO NOT DISCONNECT UNDER LOAD – 001M >I<
