Specification Sheet:
Click to download specifications

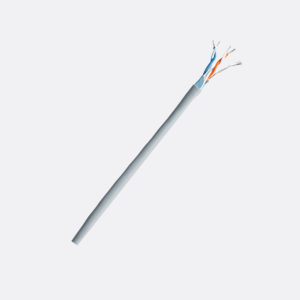

Multi-Pair Overall Shielded Cable
(9842 Equivalent)
Application
Used for computers, communications, instrumentation, sound,control, audio and data transmission.
Rating:
Voltage Rating: 30V
Temperature Rating: 80°C
Description:
Conductor: 24AWG tinned stranded copper
Insulation: HDPE
Insulation Color: white/blue*blue/white,white/orange*orange/white
Screen: Aluminum foil
Drain wire: 24AWG tinned copper
Braiding: Tinned copper,80% coverage
Jacket: LSOH
Construction:
Conductor:
AWG: 24AWG
Construction: 7/0.20
Material: Tinned stranded copper
Insulation:
Material: HDPE
Thickness(nom.) (mm): 0.60
Diameter (mm): 1.80
Color: white/blue*blue/white, white/orange*orange/white
Lay up:
Construction: 2 pairs lay up together
Screen:
Material: Aluminum foil
Drain wire:
Construction: 7/0.20,Tinned copper
Braiding:
Construction: 24/7/0.12mm,Tinned copper
Density: 80%
Jacket:
Material: LSOH
Thickness(nom.) (mm): 0.80
Overall diameter(mm): 8.60
Electrical Characteristic:
Nom. Characteristic Impedance: 120Ohm
Nom. Conductor resistance at 20°C: 94.2Ohm/km
Nom. Capacitance(cond/cond): 42.0pF/m
Nom. Capacitance(cond/scrn): 75.4pF/m
